From prototype to mass production. Ultra-fast turnarounds, 1-32 layers, zero setup fees on standard orders, and guaranteed IPC Class 2/3 quality.
Fastest Rush Turn
Multilayer Capacity
On-Time Delivery
Certified Quality

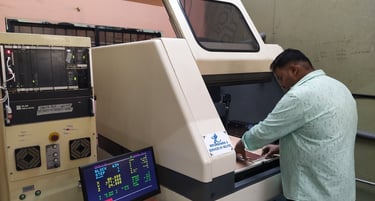

Automated Production Line
Click to watch full inline video of our high-speed SMT assembly and optical testing facility.
Experience our state-of-the-art SMT lines, automated optical inspection (AOI), 3D X-Ray testing, and high-precision multilayer lamination process right on this page.
High-Speed Surface Mount Technology (SMT) & Quality Inspection
Visualize dielectric layer thickness, copper plane distribution, core materials, and controlled impedance calculations (50Ω single-ended & 100Ω differential pair) for high-speed digital designs.
Search and filter our comprehensive PCB manufacturing tolerances, materials, and capabilities.
| Category / Parameter | Standard Capability | Advanced / High-Precision |
|---|---|---|
| Layer Count | 1 - 8 Layers | 10 - 32 Multilayers |
| Base Materials | FR-4 (TG130, TG150, TG170) | Rogers 4003C/4350B, Aluminum, Polyimide Flex, Isola 370HR |
| Min Trace Width / Space | 4 / 4 mil (0.10mm) | 3 / 3 mil (0.075mm) |
| Min CNC Hole Size | 0.20mm (8 mil) | 0.15mm (6 mil) |
| Laser Microvia Diameter | 0.15mm | 0.10mm (4 mil) Blind / Buried Vias |
| Max Panel Dimensions | 400 x 500 mm | 500 x 600 mm (Custom Oversize available) |
| Copper Weight (Outer) | 1 oz, 2 oz | 3 oz - 10 oz Heavy Copper |
| Surface Finishes | HASL Lead-Free, OSP | ENIG Gold (2-3u"), Immersion Silver, Hard Gold Plating |
| Board Thickness Range | 0.4mm - 2.4mm | 0.2mm - 6.0mm |
| Impedance Control | ±10% Standard | ±5% Ultra-Precision High-Frequency |
From single prototype PCBA to high-volume production with full SMT, THT, BOM component procurement, and 3D AOI inspection.

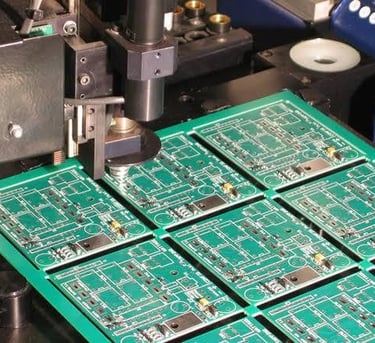

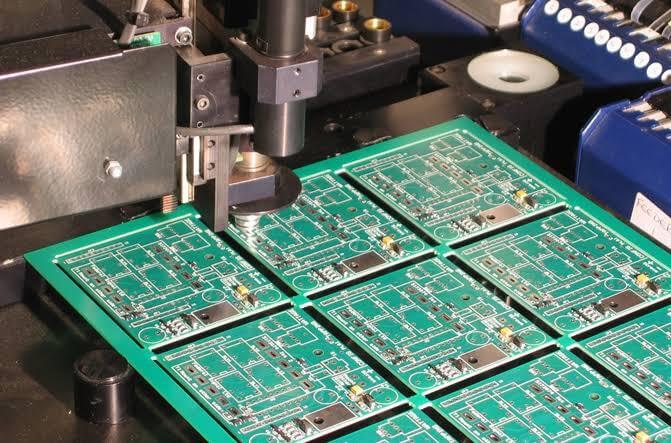

High-speed automated Pick & Place lines supporting 0201 package components, BGA down to 0.35mm pitch, QFN, and fine-pitch ICs.
Manual & automated insertion with selective wave soldering for heavy power connectors, transformers, and specialized passive parts.
Global component sourcing directly from franchised distributors (DigiKey, Mouser, Arrow) with 100% traceably verified authentic parts.
Quality Management System
Medical Device Compliance
Automotive Industry Standard
High-Reliability Assembly
Eco-Friendly Lead-Free
Avoid common manufacturing delays by adhering to our Design for Manufacturability (DFM) rules.
