Flexible PCB

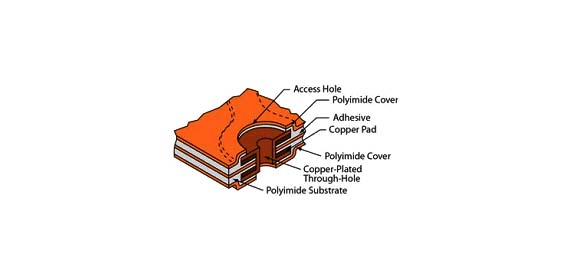

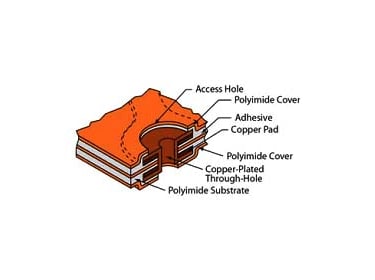

Flexible PCB is a printed circuit produced on a flexible substrate, compliant to be folded or bent to fit in the available space. Edge connectors are commonly provided, for interfacing to other components.

Benefits of Flexible PCB:

⦁ A solution to a Packaging Problem

⦁ Reduced Assembly Costs

⦁ Replacement for a Circuit Board and Wires

⦁ Reduced Size and Weight

⦁ Dynamic Bending

⦁ Thermal Management (for high temperature applications)

⦁ Aesthetics

SR SPECIFICATIONS STANDARD

1. Minimum conductor width 6 mils( 0.15 mm)

2. Minimum conductor Spacing/Air gap 6 mils( 0.15 mm)

3. Minimum Plated hole size 16 mils( 0.4mm)

4. Maximum Plated hole size 240 mils( 6mm)

5. Maximum board size 300 mm x 350 mm

6. Maximum number of layers 2

7. Minimum copper thickness 1 Oz (35 microns)

8. Maximum copper thickness 3 Oz (105 microns)

9. Dedicated Electrical Testing (BBT) Available

10. PCB Cutting options Maximum copper thickness

Product Finish

SR SPECIFICATIONS STANDARD

1. Single Sided HAL, Lacquer

2. Double Sided HHAL, TIN , Electroplated Gold & Nickel

3. Solder Mask Finish PISM, Liquid Solder Mask

4. Solder Mask color Green, White, Black, Blue ,Red

5. Legend/Ident color White, Black, yellow, Green

6. Special Requirement Carbon Printing on Push Button , Selective Gold & Nickel plating on Connecting Tabs

Product Raw Material

SR SPECIFICATIONS STANDARD

1. Single Side FR1,FR4, CEM1,CEM3, PP, Metal Clad

2. Double Side FR4

2. Board Thickness (in mm) 0.4 , 0.8 ,1.0 , 1.2, 1.6 ,2.4 , 3.2
